Examples of Objects & Actions
The implementations of the objects and actions for the base environment are in the NovelGridWorldsV2 repository, which you will have installed in Installation. In this section, we explore how the individual object and action classes relate to each other and how a specific object or action is implemented and integrated.
Objects

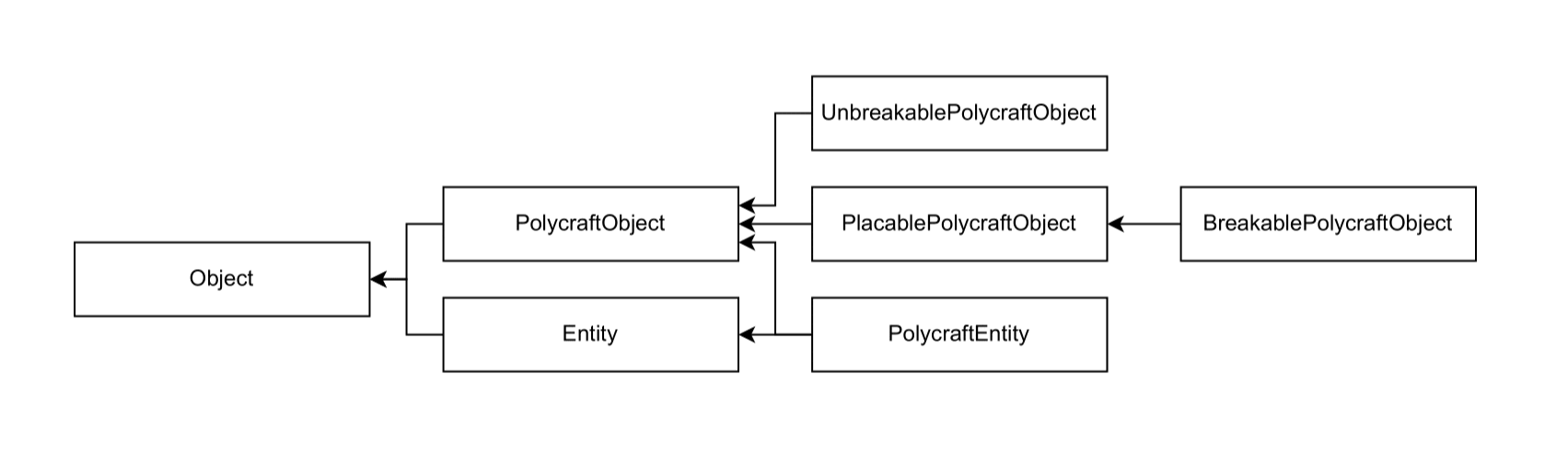

The base class for objects and entities is the Object class, the children of which are PolycraftObject and Entity. See the diagram below for the full class interdependence.
To implement a dynamic entity that has their own inventory, declare a child class of PolycraftEntity. This child class might not even need any method overriding: the entity's action set is defined in the config file, and the inventory logic is implemented in the Entity class.
To implement a static entity (object) that may or may not be breakable, collectable, or placeable, declare a child class of PolycraftObject. The child class will generally override one or more of the following methods of the Object class:
-
the static method
placement_reqs– specifies whether an object can be placed in the environment by the agent (set toFalseby default), -
acted_upon– for different actions gives the response to these actions (otherwise nothing happens), -
get_img– returns the image to be rendered in the place of the object.
The implemented object class can go in any location that can be referenced in the config file. The locations consistent with the current setup are the ngw_extensions/objects folder or, if the object is part of a novelty, the novelties/evaluation1 folder.
We demonstrate the construction of one entity and two objects, one of which has an inventory itself.
OakLog
-
As a child of the BreakablePolycraftObject class, OakLog can be broken – when acted on with the
breakaction, it changes its state tofloatingand can be collected using thecollectaction, -
as a child of the PlacablePolycraftObject class, it can be placed in the environment by the agent from its inventory,
-
if collected by an agent holding a
tree_tap,rubberis added to the agent's inventory.
easy_oak_log.py
class OakLog(BreakablePolycraftObject):
def acted_upon(self, action_name, agent: PolycraftEntity):
if action_name == "collect":
if agent.selectedItem == "tree_tap":
agent.add_to_inventory("rubber", 1)
super().acted_upon(action_name, agent)
Safe
-
As a child of the UnbreakablePolycraftObject class, Safe cannot be broken – when acted on with the
breakaction, it does not change state, -
Safe has its own inventory:
-
initially, the Safe is locked and nothing can be collected from it,
-
it can be unlocked when acted upon with the
useaction, provided that the agent has ablue_keyin its inventory, -
once unlocked and acted upon with the
collectaction, the Safe inventory is merged with that of the agent (all the contents of the inventory of Safe are transferred to the inventory of the agent).
-
safe.py
class Safe(UnbreakablePolycraftObject):
def __init__(self, type="safe", loc=(0, 0), state="block", inventory=None, **kwargs):
super().__init__(**kwargs)
if inventory is None:
inventory = {"diamond": 18}
self.type = type
self.loc = loc # update such that we update the 3D arr and add the item to it
self.state = state # two states: block and floating
self.isLocked = True
self.inventory = inventory
@staticmethod
def placement_reqs(map_state, loc):
return True
def acted_upon(self, action_name, agent):
if action_name == "break":
pass # unbreakable
elif action_name == "use":
if "blue_key" in agent.inventory:
self.isLocked = False
self.type == "unlocked_safe"
elif action_name == "collect" and not self.isLocked:
merge_inventory(agent.inventory, self.inventory)
self.inventory = {}
EntityTrader
-
As a child of the PolycraftEntity class, EntityTrader has the
print_agent_status, which allows the printing of its inventory, -
as a child of the Entity class, it has the capacity to perform actions and to add objects to its inventory,
-
since this fully characterises the expected behaviour of EntityTrader, the class requires no more implementation.
entity_trader.py
class EntityTrader(PolycraftEntity):
pass
Actions
The base class for actions is the Action class. Most other actions implemented in the infrastructure are direct children of this class. Any such child classes will generally override the two following methods:
-
check_precondition– checks whether the preconditions for the action are met, -
do_action– executes the action and causes the desired effects.
The implemented object class can go in any location that can be referenced in the config file. The locations consistent with the infrastructure setup are the ngw_extensions folder or, if the object is part of a novelty, the novelties/evaluation1 folder.
SmoothMove
SmoothMove is an action class with a relatively straightforward precondition and effect,
-
used to back up the actions
move_forward,move_backward,move_left, andmove_right, -
note: although the implementation of such a simple action is verbose, it can be translated into plain English as, "Check if the agent can make this move, and once it does, have it pick up whatever it finds in the location it moves to."
smoothmove.py
class SmoothMove(Action):
def __init__(self, direction=None, **kwargs):
self.direction = direction
self.vec = (0, 0)
self.cmd_format = r"\w+ (?P<direction>\w+)"
super().__init__(**kwargs)
def check_precondition(
self, agent_entity: Entity, target_type=None, target_object=None
):
"""
Checks preconditions of the smooth_move action:
1) The new location must not be out of bounds
2) The new location must not be occupied by another non-floating object
3) If the new location is occupied by a door, it must be open
"""
if agent_entity.facing == "NORTH":
if self.direction_tmp == "W":
self.vec = (-1, 0)
elif self.direction_tmp == "X":
self.vec = (1, 0)
elif self.direction_tmp == "A":
self.vec = (0, -1)
else:
self.vec = (0, 1)
elif agent_entity.facing == "EAST":
if self.direction_tmp == "W":
self.vec = (0, 1)
elif self.direction_tmp == "X":
self.vec = (0, -1)
elif self.direction_tmp == "A":
self.vec = (-1, 0)
else:
self.vec = (1, 0)
elif agent_entity.facing == "WEST":
if self.direction_tmp == "W":
self.vec = (0, -1)
elif self.direction_tmp == "X":
self.vec = (0, 1)
elif self.direction_tmp == "A":
self.vec = (1, 0)
else:
self.vec = (-1, 0)
else:
if self.direction_tmp == "W":
self.vec = (1, 0)
elif self.direction_tmp == "X":
self.vec = (-1, 0)
elif self.direction_tmp == "A":
self.vec = (0, 1)
else:
self.vec = (0, -1)
new_loc = np.add(self.vec, agent_entity.loc)
# check for bounds
if (new_loc >= 0).all() and (new_loc < self.state._map.shape).all():
# if it's inside the bounds
obj = self.state.get_object_at(tuple(new_loc))
if obj is not None:
# check if object is floating or not.
# if floating, still able to pass thru
# if block, cannot pass thru unless door
if not hasattr(obj, "state") or obj.state == "block":
if not hasattr(obj, "canWalkOver") or obj.canWalkOver == False:
return False
return True
else:
# out of the bound
return False
def do_action(self, agent_entity, target_type=None, target_object=None, direction=None, **kwargs):
"""
Checks for precondition, then moves the object to the destination.
"""
if self.direction is None:
if direction is None:
direction = "W"
self.direction_tmp = direction.upper()
else:
self.direction_tmp = self.direction
if self.check_precondition(agent_entity, target_object):
new_loc = tuple(np.add(self.vec, agent_entity.loc))
# multiple objects handling
objs = self.state.get_objects_at(new_loc)
if len(objs[0]) != 0:
# iterate through and remove every non-block element
# at the new location
i = 0
while i != len(objs[0]):
obj = objs[0][i]
if not (
getattr(obj, "canWalkOver", False)
and obj.state == "block"
):
collect_item(self.state, agent_entity, obj, new_loc)
else:
# not removing the current block, increment current index
i += 1
self.state.update_object_loc(agent_entity.loc, new_loc)
else:
raise PreconditionNotMetError()
return {}
Craft
Craft is a class with a slightly more complex precondition and effect,
-
allows the agent to use objects from its inventory to generate new objects,
-
uses the helper class
RecipeSetto represent the set of recipes available to the agent, -
also used for the
tradeaction, -
has the capacity of ending the game.
craft.py
class Craft(Action):
def __init__(
self,
recipe_set: RecipeSet,
recipe_name: Optional[str] = None,
default_step_cost: int = 100,
**kwargs,
):
self.recipe_set = recipe_set
self.itemToCraft = recipe_name
self.cmd_format = r"\w+ 1 ([:\w]+) ([:\w]+) ([:\w]+) ([:\w]+)(?: ([:\w]+) ([:\w]+) ([:\w]+) ([:\w]+) ([:\w]+))?"
self.default_step_cost = default_step_cost
self.is_trade = False
super().__init__(**kwargs)
def check_precondition(
self, agent_entity: Entity, target_type=None, target_object=None, recipe=None,
**kwargs
):
"""
Checks preconditions of the craft action:
1) The agent must have all of the necessary inputs
2) The agent must be adjacent to a crafting table if the recipe needs a crafting table
"""
# legacy support
if recipe is None:
if self.itemToCraft is not None:
recipe = self.recipe_set.get_recipe(self.itemToCraft)
else:
recipe = self.recipe_set.get_recipe_by_input(target_object)
if recipe is None:
print("available recipes:", self.recipe_set.recipe_index.keys())
raise PreconditionNotMetError("recipe is wrong.")
for item, count in recipe.input_dict.items():
if item == "0":
# empty slot, skip
continue
if item in agent_entity.inventory:
if count > agent_entity.inventory[item]:
raise PreconditionNotMetError(f"Not sufficient {item} in the inventory.") # not enough of the item
else:
raise PreconditionNotMetError(f"Not sufficient {item} in the inventory.") # one of the inputs isnt in the agents inventory
if self.is_trade:
# not craft, skip crafting table check
return True
elif len(recipe.input_list) <= 4 or recipe.input_list[4] is None:
# if input_list is <= 4 items long,
# which means it does not require crafting table
return True
else:
if self.is_near_target(agent_entity):
return True
else:
raise PreconditionNotMetError("Agent is not near a crafting table.")
def is_near_target(self, agent_entity):
# convert the entity facing direction to coords
direction = (0, 0)
if agent_entity.facing == "NORTH":
direction = (-1, 0)
elif agent_entity.facing == "SOUTH":
direction = (1, 0)
elif agent_entity.facing == "EAST":
direction = (0, 1)
else:
direction = (0, -1)
self.temp_loc = tuple(np.add(agent_entity.loc, direction))
objs = self.state.get_objects_at(self.temp_loc)
if len(objs[0]) == 1:
if objs[0][0].type == "crafting_table":
return True
else:
return False
def do_action(
self, agent_entity: Entity, target_type=None, target_object=None, recipe=None, **kwargs
):
if recipe is None:
if self.itemToCraft is not None:
recipe = self.recipe_set.get_recipe(self.itemToCraft)
else:
if "_all_params" in kwargs:
input_list = [o for o in kwargs["_all_params"] if o is not None]
target_object = [backConversion(o) for o in input_list]
recipe = self.recipe_set.get_recipe_by_input(target_object)
if not self.check_precondition(agent_entity,
target_type=target_type,
target_object=target_object,
recipe=recipe,
**kwargs
):
raise PreconditionNotMetError(
f"Agent {agent_entity.nickname} cannot craft {self.itemToCraft}."
)
for item, count in recipe.input_dict.items():
if item != "0":
agent_entity.inventory[item] -= count
for item, quantity in recipe.output_dict.items():
if item is not None:
if item in agent_entity.inventory:
agent_entity.inventory[item] += quantity
else:
agent_entity.inventory[item] = quantity
if self.itemToCraft == "pogo_stick" or "pogo_stick" in recipe.output_dict:
self.state.set_game_over(True)
return {}
Interact
Interact is an example of an action that can have effects defined elsewhere,
-
the
check_preconditionmethod verifies that the entity in front of the agent matches the id provided, -
the
do_actionmethod calls theacted_uponmethod of the entity being interacted with (this can have any effect as defined in theacted_uponmethod of this entity).
interact.py
DIRECTIONS = [
np.array([0, 1]),
np.array([0, -1]),
np.array([1, 0]),
np.array([-1, 0]),
]
def check_target(agent_entity, state: State, distance_min=1, distance_max=3) -> Tuple[bool, PolycraftEntity]:
# checks and finds the target entity to interact with.
agent_room = state.get_room_by_loc(agent_entity.loc)[0] # assumes the first room for easier process
for distance in range(distance_min, distance_max + 1):
for direction in DIRECTIONS:
tgt_loc = direction * distance + agent_entity.loc
if tgt_loc in agent_room:
objs = state.get_objects_at(tgt_loc)
if len(objs[1]) == 1 and hasattr(objs[1][0], "id"):
return True, objs[1][0]
return False, None
class Interact(Action):
def __init__(self, entity_id=None, **kwargs):
self.entity_id = entity_id
self.cmd_format = r"\w+ (?P<entity_id>\w+)"
super().__init__(**kwargs)
def check_precondition(
self,
agent_entity: Entity,
target_object: Object = None,
entity_id=None,
**kwargs,
):
"""
Checks preconditions of the Interact action:
1) The agent is facing an entity
2) The entity shares the id with the arg provided
"""
# make a 3x3 radius around the agent, determine if the wanted entity is there
if entity_id is None:
return False
entity_id = int(entity_id)
can_interact, target_entity = check_target(agent_entity, self.state)
if can_interact and target_entity.id == entity_id:
return True
else:
return False
def do_action(
self,
agent_entity: Entity,
target_object: Object = None,
entity_id=None,
**kwargs,
):
"""
Checks for precondition, then interacts with the entity
"""
if entity_id is None:
entity_id = self.entity_id
if not self.check_precondition(
agent_entity, target_object, entity_id=entity_id
):
obj_type = (
target_object.type
if hasattr(target_object, "type")
else target_object.__class__.__name__
)
raise PreconditionNotMetError(
f'Agent "{agent_entity.nickname}" cannot interact with {entity_id}.'
)
_, target_object = check_target(agent_entity, self.state) #TODO optimize called twice
target_object.acted_upon("interact", agent_entity)
return {}
